Hydrophone Rentals
Dynamic Ocean carries multiple leading hydrophone brands to suit a variety of applications. Our experienced team of acoustic specialists can create customized solutions tailored specifically to meet your unique in-field requirements.
In addition to offering equipment rental services, we can also provide comprehensive technical support to train your staff on both the operation and detailed processing of hydrophone data. Alternatively, if preferred, we can supply a qualified acoustics technician to assist directly with your compliance program and ensure all regulatory requirements are met efficiently.
Check Out Our Inventory Bellow

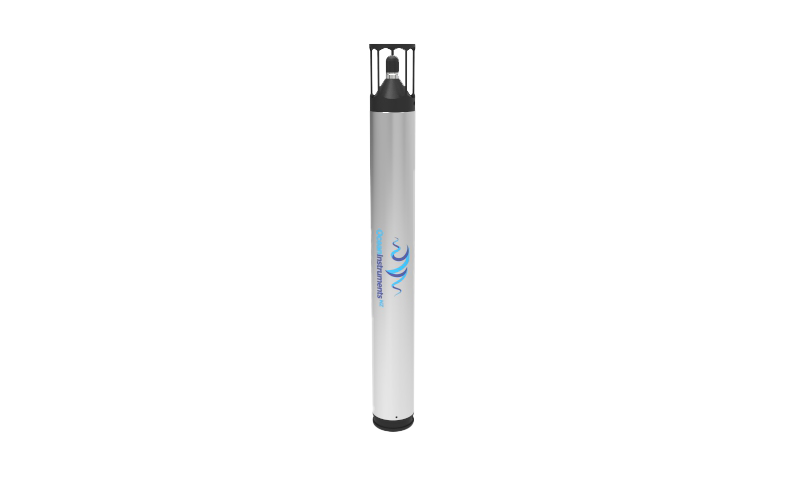

Ocean Instruments Sound Trap ST600 HF
Long term deployment hydrophone
-
Marine mammal monitoring
Fish research
Noise monitoring
Toothed whale click detection
-
Up to 160 days battery life
Up to 2TB of data storage on 4 x microSD cards
Fast field swappable batteries and memory
60 or 150 kHz bandwidth (STD & HF models)
Very low self-noise
Toothed whale click detector
Compact and rugged titanium housing
-
Bandwidth STD 20 Hz - 60 kHz ± 3dB HF 20 Hz - 150 kHz ± 3dB
Self-noise Better than sea-state 0 (100 Hz - 2 kHz) HF Less than 37 dB re 1 μPa above 2 kHz
Gain Max level before clipping: 173 dB re 1 μPa.
Sample rates HF 384, 192, 128, 96, 64 & 32 kHz
ADC 16-bit SAR
Calibration Factory calibration certificate (single point 250Hz)
Memory 4 Slots for up to 4 x 512GB removable SDXC cards for up to 2TB total (Stores up to 6TB wav data due to advanced loss-less compression)
Batteries 12 x Panasonic NCR18650B Lithium Ion 18650 cells. Provides up to 160 days continuous operation.
Click Detection Allows detection and journaling of toothed whale bio-sonar clicks. Detector runs in parallel with normal recording process. Conserves memory by simultaneously using a low sample rate for WAV recording and high sample rate for click detection.
Housing Titanium. Maximum depth is 200m, or 500m with optional safety valve. Dimensions: 530mm Long x 60mm Diameter Weight: 2.6 kg in air with 12 batteries loaded 1.2 kg in water with 12 batteries loaded
Contact us for rates and availability. We have the ability to support short and long-term rentals.

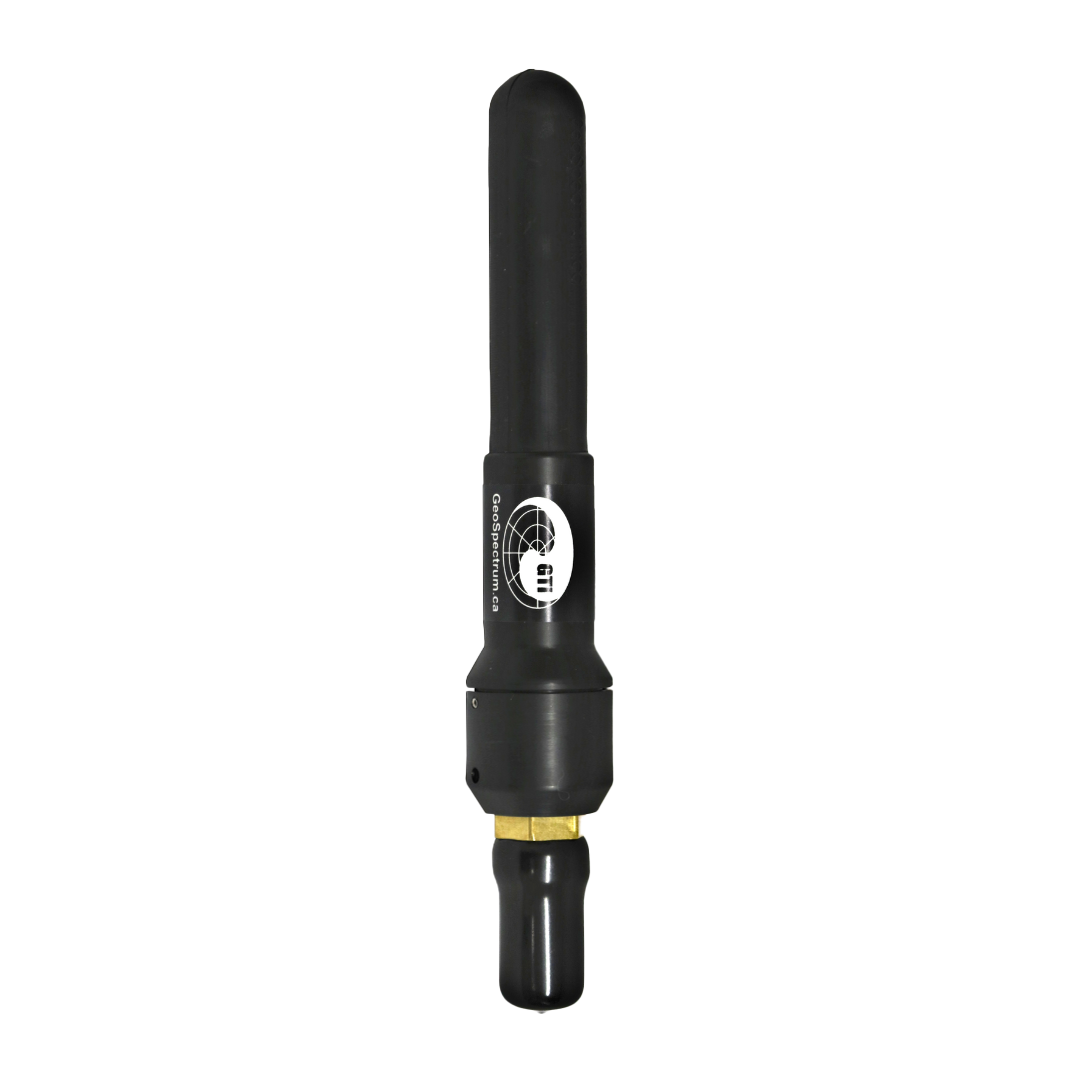

GeoSpectrum Technologies M36-905
wide-band omni-directional hydrophone
-
Marine mammal monitoring
General marine observation
-
Maximum Operating Depth 900m
Voltage Sensitivity -194.5 dB re V/μPa
Pre-Amp Gain 33.5 dB (0 - 35 dB)
Operational range 1 Hz - 30 kHz
Contact us for rates and availability. We have the ability to support short and long-term rentals.

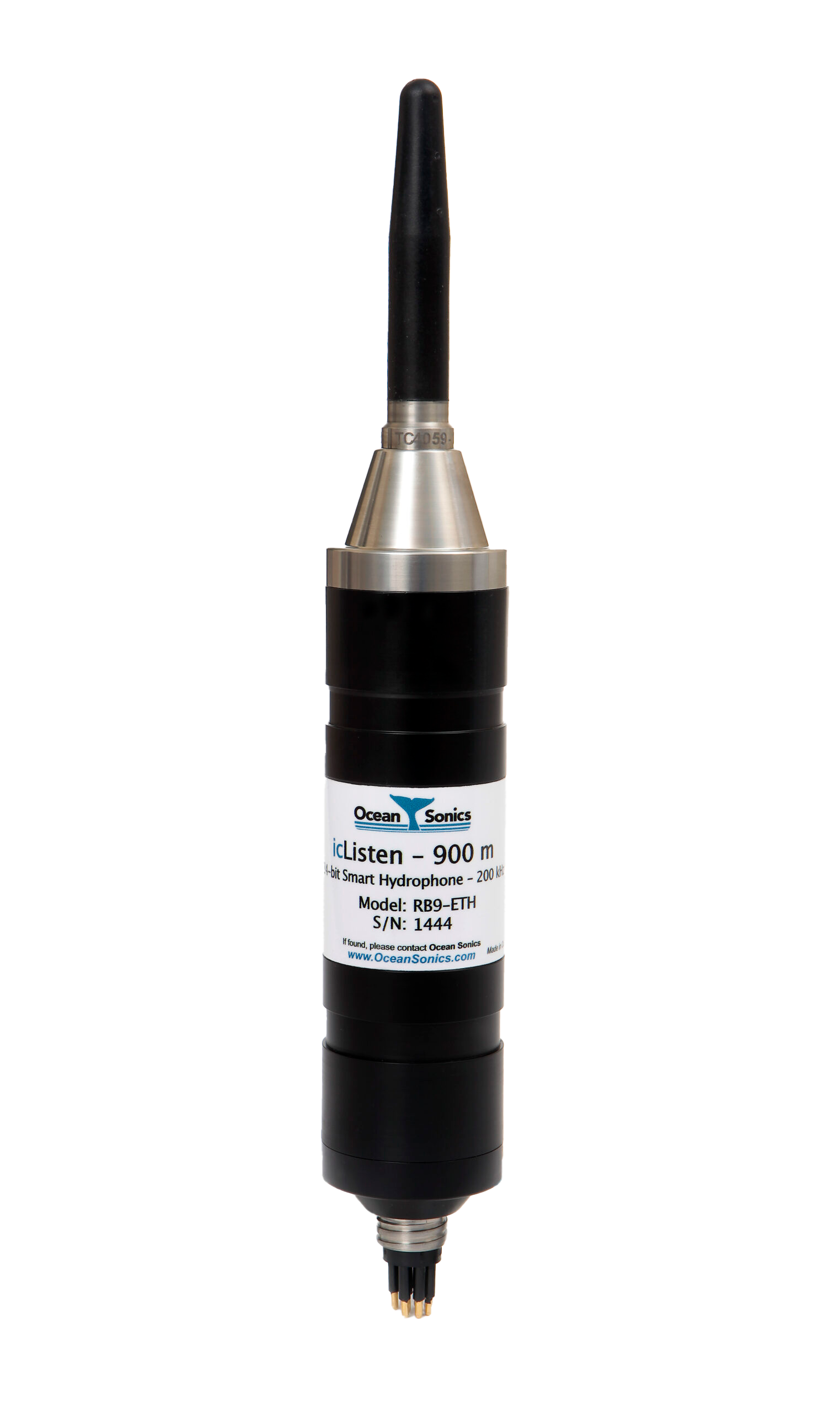

OceanSonics icListen SC2-X2 / RB-9

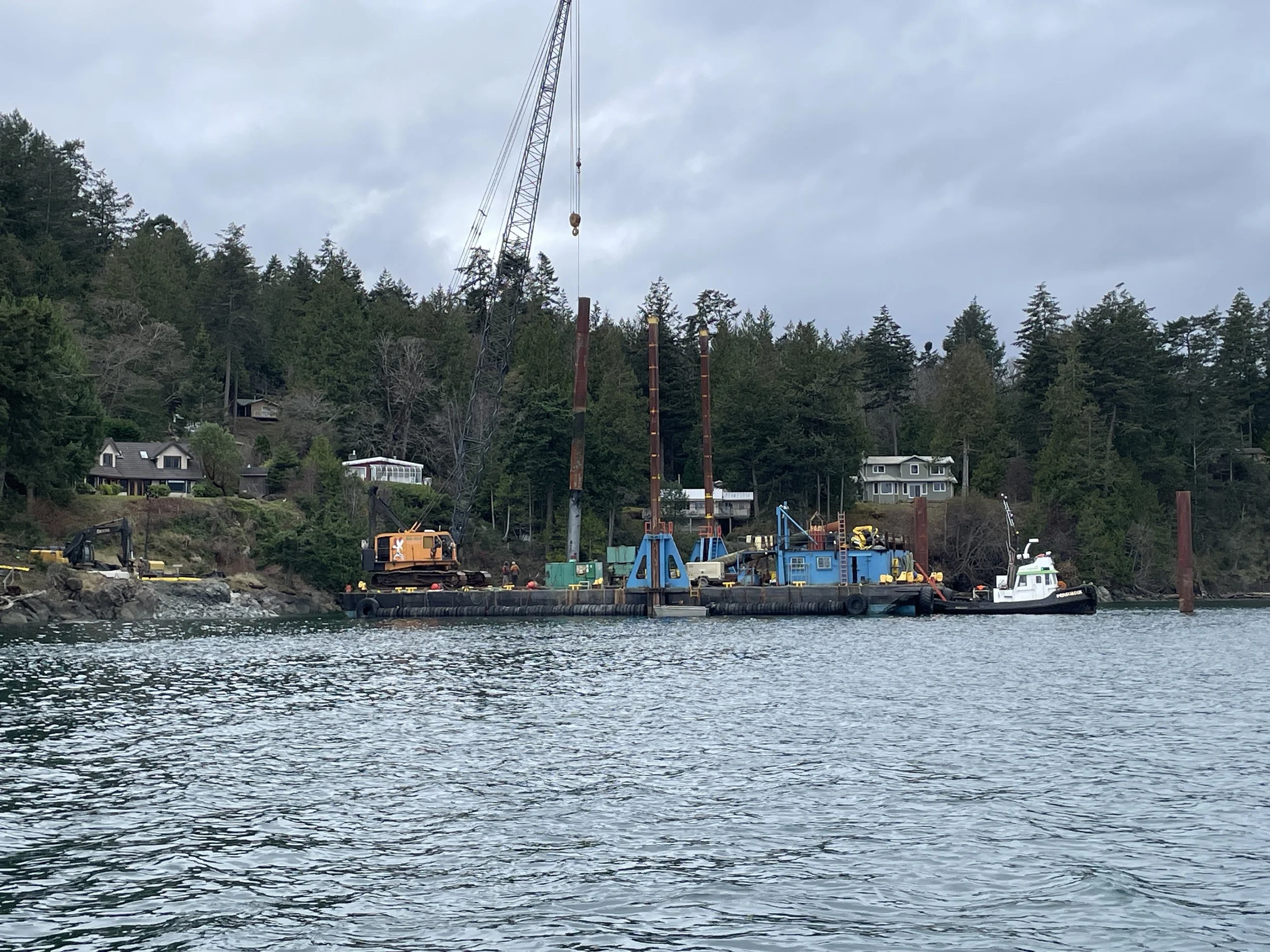

Real Time Marine Construction Hydrophone
-
Marine Construction Monitoriang
Pile Driving
Dredging
Impact Noise Monitoring
Underwater Radiated Noise Measurement
Near Shore Blasting
-
Low Frequency Cutoff 10Hz
±3 dB Bandwidth 200 kHz
Usable Bandwidth 200 kHz
Maximum Data Sample Rate 512 ksps
Resolution 24 bits
Minimum Self Noise 36 dB re µPa²/Hz
Peak Input Level (µPa) 184 dB re µPa
Peak Input Level (Volts) 6 dBV
Voltage Sensitivity -177 dB re µPa
Dynamic Range, 1.0 Hz Bandwidth 147 dB
-
Real time Monitoring
Autonomous Monitoring
Contact us for rates and availability. We have the ability to support short and long-term rentals.
Ocean Instruments Sound Trap ST300 HF
Short Term Deployment Hydrophone
-
Marine mammal monitoring
Fish research
Noise monitoring
Toothed whale click detection
-
Up to 13 days battery life recording on internal battery
Simple operation with IR remote control
Fast USB offload
60 or 150 kHz bandwidth (STD & HF models)
Very low self-noise
Toothed whale click detector
Sealed, Low maintenance, flood proof housing
-
Bandwidth 20 Hz - 150 kHz ± 3dB
Self-noise Better than sea-state 0 (100 Hz - 2 kHz) HF Less than 37 dB re 1 μPa above 2 kHz
Gain Two gain settings - Low noise and high dynamic range.
Max level before clipping: 186 dB re 1 μPa.
Sample rates HF 576, 288, 192, 96, 72 & 48 kHz
ADC 16-bit SAR
Calibration Factory calibration certificate Self calibration check
Memory 256 GB
Click Detection Allows detection and journaling of toothed whale bio-sonar clicks. Detector runs in parallel with normal recording process. Conserves memory by simultaneously using a low sample rate for WAV recording and high sample rate for click detection.
Connectivity: Wet pluggable connector for connection to GPS or radio telemetry
Max depth: 500m
Contact us for rates and availability. We have the ability to support short and long-term rentals.
Turbulent Research Porpoise EXT
Single Channel Underwater Acoustic Monitoring System
-
Acoustics Detection, Localization and Classification
Marine Mammal Studies and Real Time Monitoring
Multi Sensor Ocean Observation
Ambient Noise Monitoring
Wind and Tidal Renewable Energy Monitoring
-
Up to 8TB of Micro SD Storage
Real time streaming audio and spectrogram.
Extremely low power.
Internal battery and optional external battery packs.
-
Power
Internal Power: 12 x AAA cells, 36 x D-cells or 84 x D-cells
External Power: 6.5V - 26V DC, External Packs Available
Acoustic
Analogue Bandwidth > 150 kHz
ADC: 24 Bits Sigma Delta
Dynamic Range: 110 dB (full bandwidth)
Configurable Gain: 10 dB- 40 dB
Maximum Sensitivity: -165 dB Re 1 V/µPa
Sampling Rates Supported: 2khz, 6khz, 8khz, 16khz, 24khz, 32khz, 48khz, 64khz, 96khz,128khz, 192khz, 256khz, 384khz
Programmable High Pass Filter: Software Controlled
Memory
1TB Micro SD standard, upgradeable to 8TB
Configurable recording, schedule and duty cycling
Dimensions
PORPOISE-EXT (2000m): 70mm x 233mm, 4.8lbs
Communications
Real Time Ethernet Streaming - spectrograms, live audio, configuration and data download
Environmental
PORPOISE-EXT: 2000m pressure vessel, pressure relief valve included.
NOTE: External hydrophone connection via 8 pin female subconnector. EXT- Version
External Integration
GPS Input for PPS Time Synchronization
Real Time Buoy
Contact us for rates and availability. We have the ability to support short and long-term rentals.

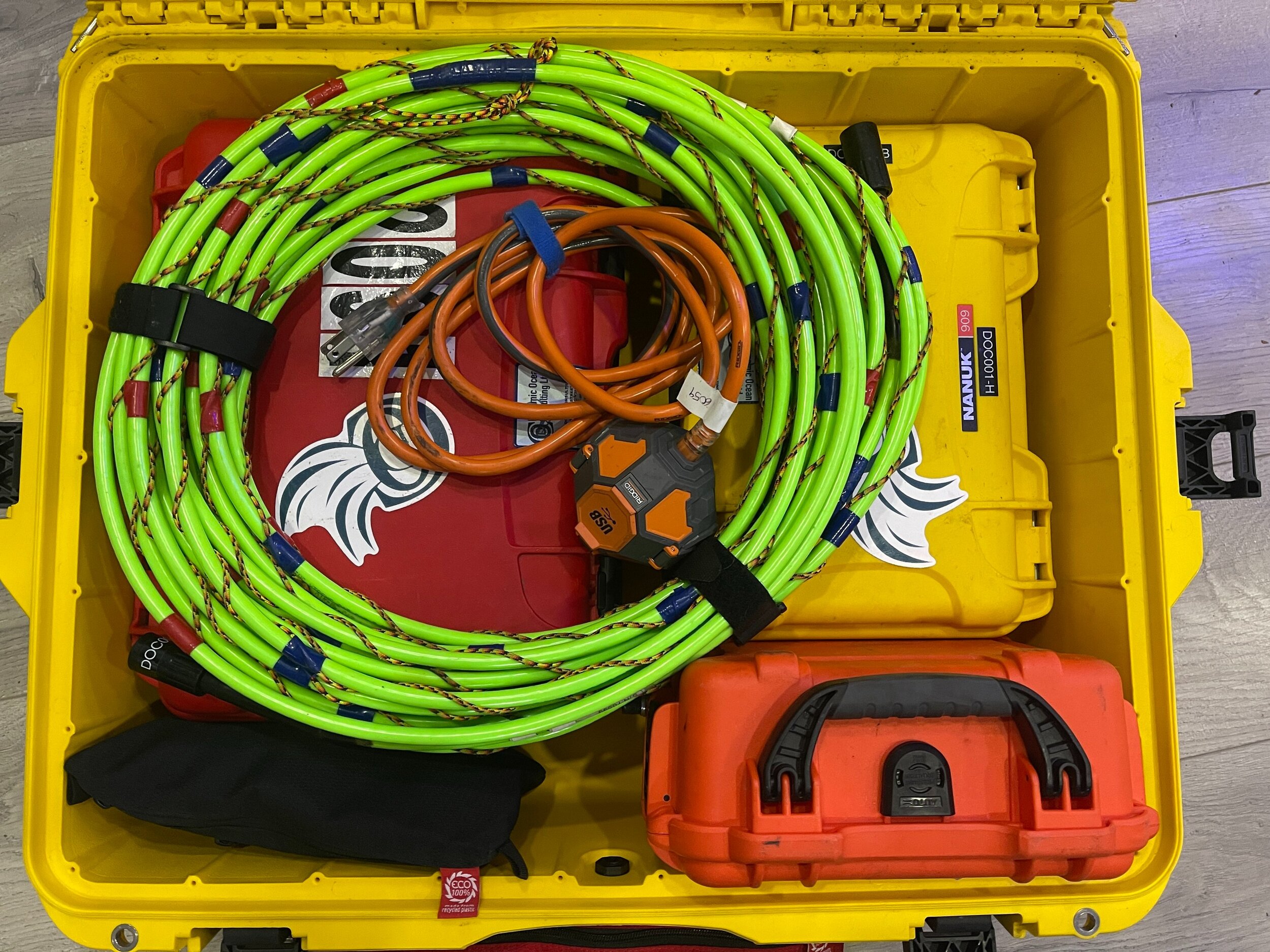

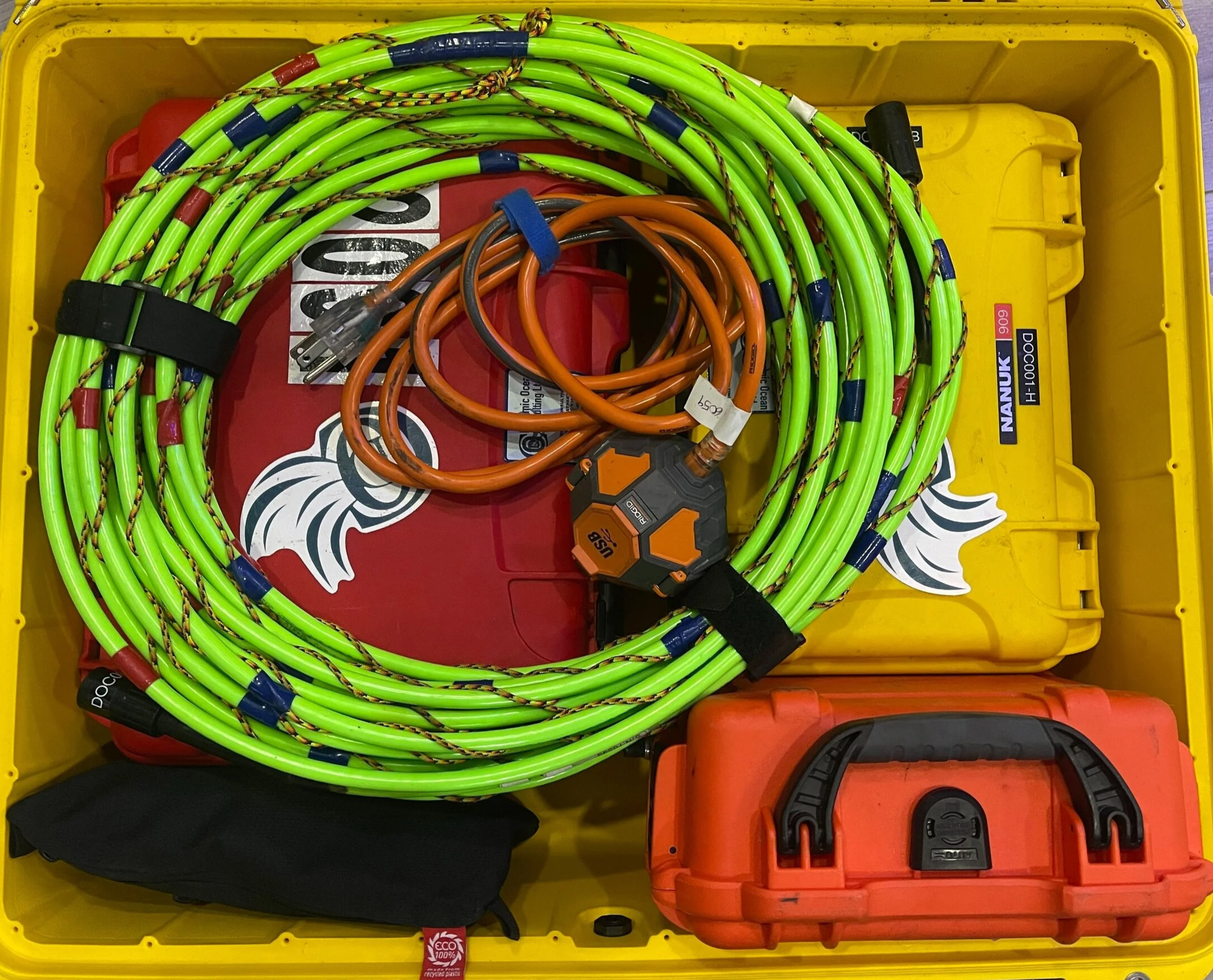

Portable Deployment
Our hydrophones are carefully set up, fully charged, and primed for immediate deployment. Each hydrophone system is housed in a robust hard case, ensuring that all equipment remains securely protected and durable enough to withstand the most challenging and demanding field operations.
Customized Deployment Solutions
We offer advanced acoustic release systems designed for customized, long-term deployments of a wide range of instrumentation at various depths, ensuring secure and reliable underwater operations.
Hydrophone Calibration
We can support the rental of equipment you require for ‘field calibration’ of your hydrophone for times this is required by Fisheries and Oceans Canada (DFO). We offer a rental of a pistonphone and sound level meter. The pistonphone is coupled to the hydrophone and plays a tone of known frequency (250 Hz) and known amplitude (e.g., 114 dB), and this is then recorded and measured on the hydrophone to confirm the levels recorded by the hydrophone.
A calibrated sound level meter is also included in our calibration package to confirm the output of the pistonphone in the field and also to measure the sound pressure level within the coupler.
Pistonphone - GRAS 42AA Pistonphone, Class 1
Sound Meter - Bruel & Kjaer 2245 Sound Level Meter
